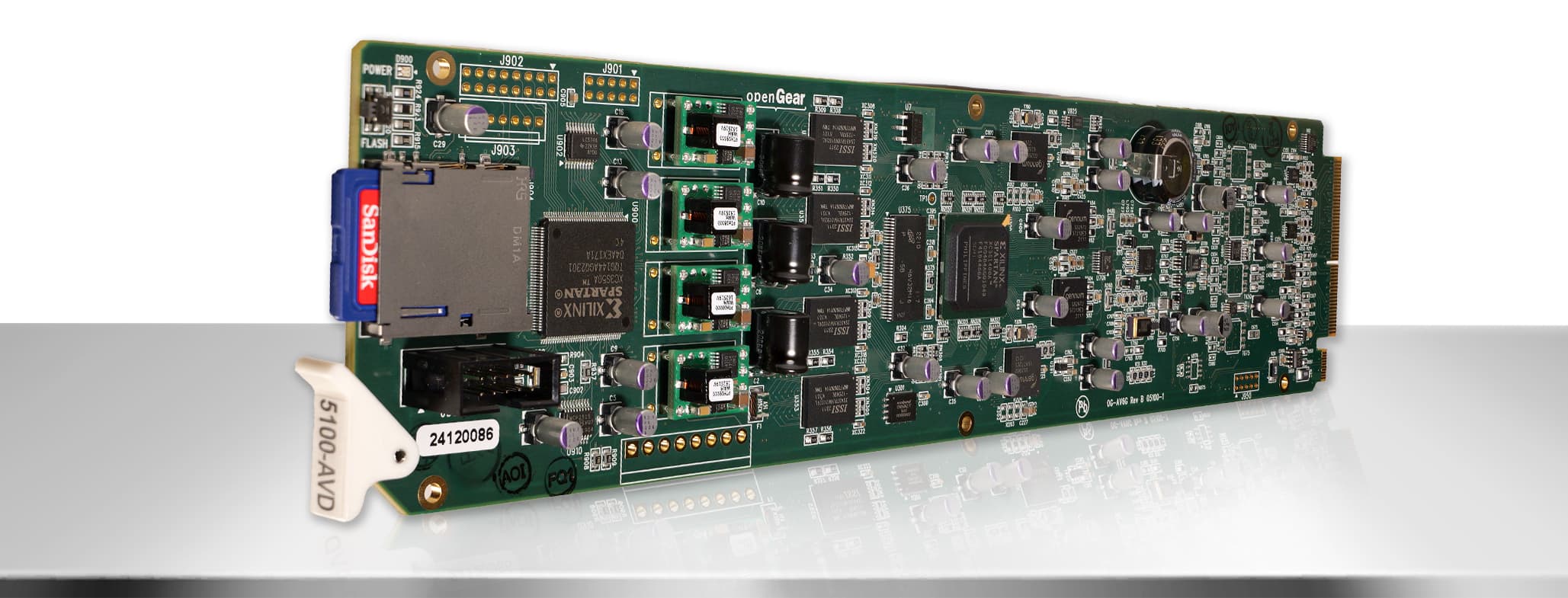

Modular openGear® CardModel 5100
Model 5100
4K/HD/SD Dual Channel
AV Broadcast Delay
with Profanity Elimination
The Model 5100 is our next-generation openGear® modular broadcast delay card, engineered specifically for live feeds, broadcasts, and sporting events. One card can deliver 25+ seconds of delay for a single 1080p/60 channel, or 12+ seconds of delay each for two 1080p/60 channels. Combining two cards will provide up to 12+ seconds of delay at 4K-UHD. This gives operators a fail-safe window to intercept and block profanity, verbal outbursts, or visual incidents. Alternatively, it can be used to ensure seamless audio/video synchronization with other equipment, streams, or venue acoustics.
Contact us for Reseller Pricing and Volume Discounts!
Features
| Frame Compatibility | Compatible with Emmy®-award winning openGear® 20 slot modular frames: hot-swappable, with redundant power and cooling, 10-BNC rear module included |
| Video Standards | 4K-UHD (with 2 cards), 3G-SDI, HD-SDI, SD-SDI, supporting most international broadcast standards (auto-detected) |
| Delay Range | Adjustable up to 25+ seconds (single 1080p/60 channel) or 12.5 seconds (dual 1080p channels), 51+ secs at 1080i (single channel) or 25+ secs 1080i (dual channel). 12+ secs 4K UHD (requires two cards) |
| Audio Masking Modes | Mute, multiple pitch tones, switch to safe audio channel, audio channel shuffle |
| Video Masking Modes | Switch to safe video input, blur, freeze frame, black, custom still image, test signal |
| Operational Modes | Single Channel Profanity Delay: where the B channel is used as the 'safe' input (with its own adjustable delay); Dual Channel Delay: where the A and B channels operate as independent delays with independent formats; Two Operator Delay: where the B channel output provides a second operator 'tap' and the B channel input acts as the 'safe' input. |
| Control Interfaces | DashBoard Control System GUI, 4 hardware GPI trigger ports, optional serial cable adapter and Remote Control Switchbox (available separately) |
| Audio Processing | 16 channel audio mapping, with lip-sync adjustment and independent audio channel output level adjustments |
| Reaction Time Control | Adjustable reaction time for profanity switching, from 0 to 6 seconds in increments of 0.1 seconds, with instant release |
| Still Image Buffers | 4 still image buffers for capture, save to file, and load from SD card interface |
| Phase Adjustment | Horizontal and Vertical phase adjustment with respect to selected genlock reference |
| Phase Trim | Horizontal phase trim on each output channel to compensate for varying cable lengths, or to align Quad-link signals |
| Firmware | Easy upgrades via firmware files downloadable from the Support page and installed via Dashboard or the SD-card interface |
| 4K/UHD Support | Two cards support a single 4K channel delay, Four cards support a single 4K channel delay + Aux channel or a 4K Two Operator Tapped Delay + Aux |
| Warranty | Limited 5 year warranty |
