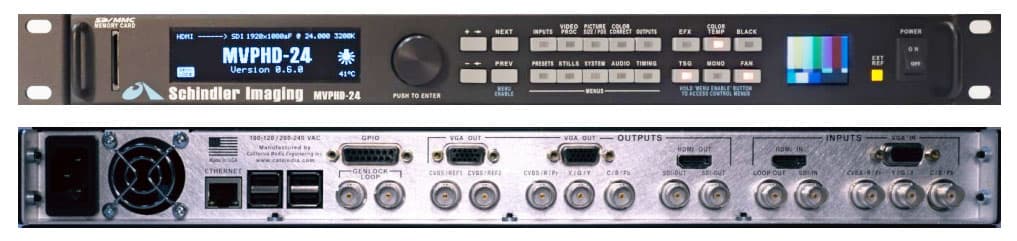

MVPHD-24
24-Frame Playback Converter
The newest generation broadcast quality frame rate converter designed specifically for the film industry and widely utilized by studios and 24-frame playback specialists.
Conventional standards converters are not designed for the varied playback situations encountered in the film industry, and often require the use of additional equipment. Schindler Imaging has incorporated the functionality of other equipment with our high quality processing, producing a single unit solution to simplify the task of 24-frame video playback.
Since 1998, Schindler Imaging converters quickly became the industry standard for 24-frame playback specialists. Now merged with California Media Engineering, Inc., the MVPHD-24 maintains the same functionality plus support for full 10-bit 1080p processing, up-down frame rate conversion, sill image capture and display, playback of recorded video from the internal Raspberry Pi, remote control via Dashboard software, customizable test signals, and standard support for HDMI, VGA, SDI, HD/SD component, and composite inputs and outputs.
Features
| Input Video Formats | VGA Standards, 1080p, 1080i, 720p, 480i (NTSC), 576i (PAL), auto-detecting |
| Output Playback Rates | True 24.000 Hz, 23.976 Hz, 25.000 Hz, 29.97 Hz, 30.00 Hz |
| Input Connectors | Composite Component Y/C or RGB via up to 3 BNCs, VGA via HD-15 Male, HDMI v1.4, SDI via 2 BNCs with buffered loop out, Genlock via 2 BNCs with Hi-Z loop out |
| Output Connectors | Composite Component Y/C or RGB via up to 3 BNCs, VGA via 2x HD-15 Male, HDMI v1.4, SDI via 2x BNCs, 2x Composite/TTL Sync References via BNCs |
| Genlock Modes | Frame-Drive, Vertical-Drive, HD tri-level, SD black burst, SDI input, or Free Run |
| Processing | Motion compensated adaptive de-interlacer, Up/Down/Cross conversion, 4:2:2 10-bit per channel sampling, Adaptive 3D comb filter for composite, Full Frame TBC, accepts non-interlace video games and Macrovision encoded sources |
| Frame Rate Conversion | Progressive processing with 3-frame motion filtering, 46 ms or 2.75 fields (on average) delay through unit @ 24FPS |
| Color Correction | Output Color Temperature adjustment now with continuous settings between 2500K to 6500K in 100K increments, RGB color correction, Proc Amp controls |
| Genlock phase controls | Vertical (360 degrees), horizontal, and subcarrier, with Blue/Yellow test signal available on separate fields for vertical phasing |
| Image Sizing | High performance scalar with independend horizontal and vertical sizing and positioning, includes support for 2x2 or 4x4 video walls |
| Dedicated Effects Buttons | Freeze Frame, Synchronized snow, MPEG blockiness dissolve, Fade to Black, Variable Fade in Video Noise (Snow), Monochrome |
| Test Signal Generator | 26 Test Signals for all outputs, plus 8 customizable test signals |
| Picture Store | 4 Flash memory still image buffers up to 1080p that are retained after power off, may be captured from input then optionally stored to and loaded from SD card |
| Front Panel SD/MMC card interface | Used for firmware updates from files downloadable from the Support page, transferring still images to the unit, and loading custom test signals to the unit |
| Internal Raspberry Pi Processor | Provides a selectable video input to the unit, playing video files or still images from USB drive inputs (rear panel) or the web |
| Remote Control | Dashboard software (downloadable for free) providing remote control over Ethernet input (rear panel) or Wifi via the Raspberry Pi, providing all controls for multiple MVPHD-24 units via Mac, PC or Linux platforms |
| Fan | Blower Fan with 16 adjustable speeds and Off setting to eliminate noise when filming on-set, emergency override when internal temperature becomes critical |
| Front Panel | Front Panel Video Diaplay to monitor output video and effects, Genlock Indicator light, lit buttons to indicate mode selections, SD card interface |
| Chassis | Medical Grade power supply, Steel front panel and removable ears for durability, remaining chassis is aluminum for lightweight shipping, 1 RU, 12" x 9" x 2.25" (with feet), approx 10 lbs |
| Warranty | Limited 5 year warranty |
